This a very nice script, but be adviced that llcastray can only sense a
objects bounding box and so will get what apears to be false hits if you
put a path through a hollowed prim and will not sense the walls inside the
hollow.
On Nov 19, 2013 12:53 PM, "Jeff Kelley" <opensim at pescadoo.net> wrote:
> As you may have noticed, since 0.7.6 llCastRay is now functional. We can
> think about helping our NPC to find their way in a closed environment.
>
> This method relies on marker prims, or beacons, defining waypoints. The
> following script computes the connexity matrix between a set of waypoints.
> A one in [ i,j ] means there is a direct path from i to j.
>
> Build some walls on a flat ground. At corners and intersections, lay a
> number a thin prims named wp1, wp2 and so on. Their altitude should be
> higher than or equal to the wall's base, so that rays casted between two

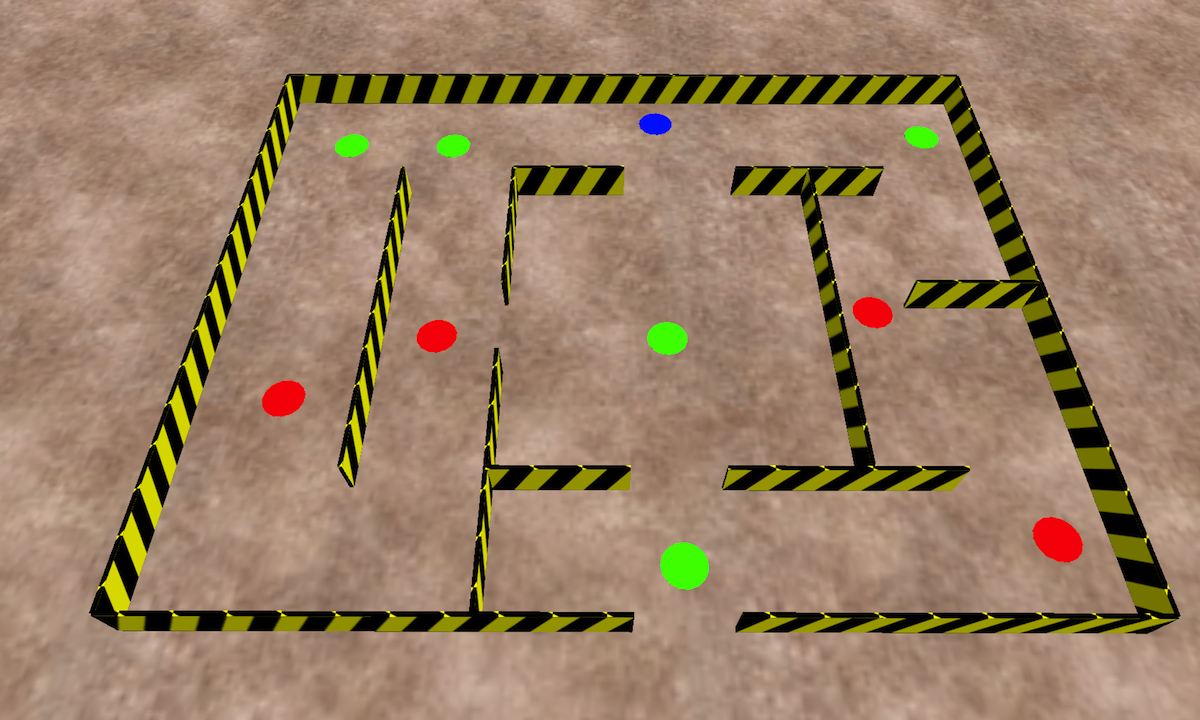

> waypoints will hit the walls. Here is a picture of my test rig:
> http://www.pescadoo.net/tmp/NPC_maze.png
>
> It is advised to allow osSetPrimitiveParams. We'll get a nice demo for the
> price. Let's now browse the code.
>
> First, we sense the waypoints. We iterate on llSense, incrementing the
> index until we get a no_sensor event. The waypoints names, locations and
> keys are stored in a strided list.
>
> Then, we compute the matrix calling llCastRay for each couple of
> waypoints. We analyse the hits and declare the two waypoints are connex if
> we hit any object whose name IS NOT "wp*". This rule may be refined (using
> the object's height, volume, or some more sophisticated rule depending on
> the environment, a rug should no count as a wall). As the matrix is
> symmetric, we compute only a half-matrix and fill the transposed cells with
> the same value. We also fill the diagonal with ones. The matrix is stored
> as a string a '0' and '1', with pseudo-array accessors.
>
> Finally, we enter a listening state. Saying "wp3" will highlight waypoint
> 3 in blue, and all connex waypoints in green (that's why we need
> osSetPrimitiveParams).That's the point your NPC can reach without bumping
> into the walls. Unreachable waypoints are colored red.
>
> The script stops here for today. You guess it, the next step is to find a
> path from waypoint A to waypoint B. A classical graph theory exercise, the
> " transitive closure". I assume you know how to make a NPC move from point
> A to point B.
>
> Have fun!
>
>
>
>
> DEBUG (string msg) { llOwnerSay (msg); }
> PRINT (string msg) { llSay (0, msg); }
>
> //
> // Waypoints list and accessors
> //
>
> list WayPoints; // Strided list (name, location, key)
>
> string WPnam (integer i) { return llList2String (WayPoints, 3*i+0); }
> vector WPLoc (integer i) { return llList2String (WayPoints, 3*i+1); }
> key WPKey (integer i) { return llList2Key (WayPoints, 3*i+2); }
> integer WPnumber () { return llGetListLength (WayPoints) / 3; }
>
> integer FindWP (string name) {
> integer i = llListFindList (WayPoints, [name]);
> if (i== -1) return i;
> else return i/3;
> }
>
>
> //
> // Connexity matrix and accessors
> //
>
> string Matrix; // Matrix NxN of booleans implemented as string of 0/1
>
> MatrixNew (integer size) {
> integer n=0; for (n=0; n<size*size; n++)
> Matrix += "0";
> }
>
> MatrixSet (integer i, integer j, integer value) {
> integer size = (integer)llSqrt(llStringLength (Matrix));
> integer index = i*size+j;
> Matrix = llDeleteSubString (Matrix, index, index);
> Matrix = llInsertString (Matrix, index, (string)value);
> }
>
> integer MatrixGet (integer i, integer j) {
> integer size = (integer)llSqrt(llStringLength (Matrix));
> integer index = i*size+j;
> return (integer)llGetSubString (Matrix, index, index);
> }
>
> MatrixPrint () {
> integer size = (integer)llSqrt(llStringLength (Matrix));
> integer n=0; for (n=0; n<size; n++) {
> PRINT (llGetSubString(Matrix, n*size, n*size+size-1));
> }
> }
>
>
> //
> // Colors, osFunctions to change color by ID
> //
>
> vector RED = <1.0, 0.0, 0.0>;
> vector GREEN = <0.0, 1.0, 0.0>;
> vector BLUE = <0.0, 0.0, 1.0>;
> vector BLACK = <0.0, 0.0, 0.0>;
> vector GREY = <0.5, 0.5, 0.5>;
> vector WHITE = <1.0, 1.0, 1.0>;
>
>
> SetIDColor (key id, vector color) {
> osSetPrimitiveParams(id, [PRIM_COLOR, ALL_SIDES, color, 1.0]);
> }
>
> BlinkIDColor (key id, vector color) {
> integer i; for (i=0; i<2; i++) {
> osSetPrimitiveParams(id, [PRIM_COLOR, ALL_SIDES, color, 1.0]);
> llSleep (0.1);
> osSetPrimitiveParams(id, [PRIM_COLOR, ALL_SIDES, WHITE, 1.0]);
> llSleep (0.1);
> }
> }
>
> ResetAll () {
> integer i; for (i=0; i<WPnumber(); i++)
> SetIDColor (WPKey(i), GREY);
> }
>
>
> //
> // Waypoints sensing
> //
>
> integer wpindex; // The current waypoint index
>
> SenseNext () {
> string target = "wp"+(string)(++wpindex);
> llSensor (target, "", PASSIVE, 200.0, PI);
> }
>
> SenseDone (string theNam, key theKey, vector theLoc) {
> if (theKey == NULL_KEY) state deux;
>
> DEBUG (theNam +" "+(string)theLoc);
> WayPoints += [ theNam, theLoc, theKey ];
> SenseNext();
> }
>
> string Key2Name (key id) {
> list dtls = llGetObjectDetails (id, [OBJECT_NAME]);
> return llList2String (dtls, 0);
> }
>
> float Key2Height (key id) {
> list dtls = llGetObjectDetails (id, [OBJECT_POS]);
> vector pos = llList2Vector (dtls, 0);
> return pos.z;
> }
>
> //
> // Connexity test
> //
>
> integer TestPath (integer wp1, integer wp2) {
> string nam1 = WPnam(wp1); vector loc1 = WPLoc(wp1); key key1 = WPKey
> (wp1);
> string nam2 = WPnam(wp2); vector loc2 = WPLoc(wp2); key key2 = WPKey
> (wp2);
>
> list hits = llCastRay (loc1, loc2, [RC_MAX_HITS,5]);
> integer found = (llGetListLength(hits)-1) / 2;
> integer status = llList2Integer(hits, -1);
>
> DEBUG ("");
> DEBUG ("CastRay from " +nam1 +" to " +nam2 +", Hits/Status : "
> +(string)found +" " +(string)status);
>
> integer numocclu = 0;
> integer i; for (i=0; i<found; i++) {
> key hitKey = llList2Key (hits, 2*i+0);
> vector hitLoc = llList2Vector (hits, 2*i+1);
> string hitNam = Key2Name (hitKey);
> float hitHei = Key2Height (hitKey);
> float hitDis = llVecDist (hitLoc, loc1);
>
> // Test d'occlusion. Ici, on se base sur le nom
> // On peut se baser sur la hauteur mais ne pas
> // utiliser hitLoc qui est le point d'interception
>
> integer occlusion = (llGetSubString(hitNam,0,1) != "wp");
> DEBUG ("["+(string)i+"] "+hitNam+" "+(string)hitHei+"
> "+(string)occlusion);
> if (occlusion) ++numocclu;
> }
>
> // Waypoints are connex if zero occlusion
>
> integer connex = (numocclu == 0);
> DEBUG (nam1 +" to " +nam2 +" : "+(string)connex);
> return connex;
> }
>
>
> //
> // Highlight connex waypoints
> //
>
> ShowNeighbours (integer wp1) {
> ResetAll ();
>
> key key1 = WPKey (wp1);
> SetIDColor (key1, BLUE);
>
> integer wp2; for (wp2=0; wp2<WPnumber(); wp2++) {
> integer reach = MatrixGet (wp1, wp2);
> key key2 = WPKey (wp2);
> if (wp1 != wp2)
> if (reach) SetIDColor (key2, GREEN);
> else SetIDColor (key2, RED);
> }
> }
>
>
> ///////////////////////////////////////////////////////
> // Step 1 : sense all waypoints and make a structure
> ///////////////////////////////////////////////////////
>
> default {
>
> state_entry() {
> PRINT ("Sensing waypoints");
> SenseNext();
> }
>
> sensor(integer num) {
> key hisKey = llDetectedKey (0);
> vector hisPos = llDetectedPos (0);
> string hisNam = llDetectedName (0);
> SenseDone (hisNam, hisKey, hisPos);
> }
>
> no_sensor() {
> SenseDone ("", NULL_KEY, ZERO_VECTOR);
> }
>
> state_exit() {
> PRINT ((string)WPnumber()+" found");
> }
>
> }
>
> ///////////////////////////////////////////////////////
> // Step 2 : compute the connexity matrix
> ///////////////////////////////////////////////////////
>
> state deux {
>
> state_entry() {
> PRINT ("Computing Matrix");
> MatrixNew (WPnumber());
>
> integer wp1; integer wp2;
> for (wp1=0; wp1<WPnumber(); wp1++)
> for (wp2=wp1+1; wp2<WPnumber(); wp2++) {
> integer reach = TestPath (wp1, wp2);
> MatrixSet (wp1, wp2, reach);
> MatrixSet (wp2, wp1, reach);
> MatrixSet (wp1, wp1, TRUE);
> }
>
> MatrixPrint ();
> state trois;
> }
>
> }
>
> ///////////////////////////////////////////////////////
> // Step 3 : listen for waypoint and highlight result
> ///////////////////////////////////////////////////////
>
> state trois {
>
> state_entry() {
> PRINT ("Listening to commands");
> llListen (0, "", llGetOwner(), "");
> }
>
> listen (integer channel, string name, key id, string message) {
> integer wp = FindWP (message);
> if (wp != -1) ShowNeighbours (wp);
> }
>
> }
>
>
